Horizontal Pipe Stranding Machine

Why Choose Us

Customized service

We accept customers to customize equipment with different requirements, and technicians provide full guidance. We can also provide samples, test samples and a series of processes.

Quality control

We have established a complete quality management system, and strictly implement procedures such as drawing review, process monitoring, inspection and acceptance during product manufacturing to ensure that product quality meets the highest standards.

Professional team

We have a highly qualified professional team covering multiple fields such as R&D, production and after-sales service. We are committed to providing customers with efficient and reliable technical support and services.

Customized Horizontal Pipe Stranding Machine

We are committed to providing you with customized horizontal pipe stranding machine manufacturing solutions to precisely match your project needs. The main customizable parameter options are:
● Twisted wire core material
● Twisted wire diameter range
● Twisting speed
● Power
● Dimensions
● Weight
● Control system

Our Best-Selling Horizontal Pipe Stranding Machine

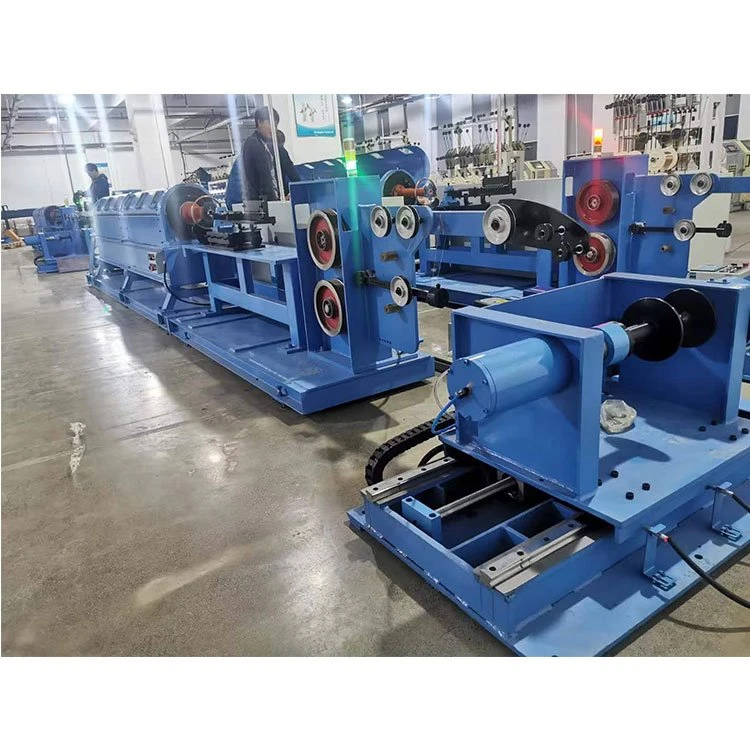

200/18 Horizontal Pipe Stranding Machine

Cable Stranding Machine
The multi-axis motion control card is used to work with the touch screen, the controller data is permanently saved, and the product setting data can be managed by U disk.

Wire Stranding Machine
It is a special motor stator winding machine, mainly for automobile and motorcycle magneto, industrial ventilator, golf cart, Winding of coils for balance cars, high-end strollers, large drone motors, etc.

200/12 Horizontal Pipe Stranding Machine
Widely used in rectifiers, electric fans and other household motor stator coils and medium coils, solenoid valves, high-power transformers.

200/18 Horizontal Pipe Stranding Machine
The main shaft is specially designed and hardened, and the high-strength pneumatic tailstock can withstand the thick or flat wire winding of general large-scale products.

Horizontal Pipe Stranding Machine Specifications

Model No	Stranding machine
Number of Spindles	1
Wire size MM	0.2-1.8
Controller	Multi-axis motion control card
Main motor	1.5KWservo motor
Spreading motor	400Wservo motor
Pole changing motor	400WServo motor + reducer
Speed RPM	700
Tension system	Permanent magnet tensioner (optional electromagnetic tensioner)
Power supply	220V 50HZ
Air supply	4-7KG/CM2
Weight KG	230
Dimensions L×W×H MM	20007501800

Basic Safety Features of Horizontal Pipe Stranding Machine

Emergency Stop Mechanisms

One of the most important safety features is the emergency stop mechanism. These systems allow operators to instantly halt the machine in the event of an emergency. Whether it's a push-button, a cord, or a bar-operated stop, the key is that it should be easily accessible and capable of shutting down the machine without delay.

Safety Guards and Barriers

High-speed wire cable machines require physical barriers to protect operators from the machine's moving parts. Safety guards and barriers prevent operators from coming into contact with rotating or fast-moving components, which could otherwise cause serious injuries. In addition to physical barriers, interlocking mechanisms that disable the machine when these guards are opened or removed are essential for added protection.

Overload Protection Systems

Overload protection systems are vital in preventing a wire cable machine from operating beyond its safe capacity. When a machine is forced to run under excessive loads or speeds, it increases the risk of component failure, overheating, and even electrical fires. Overload protection automatically shuts the machine down when it exceeds predefined operational limits, ensuring the safety of both the operator and the equipment.

Horizontal Pipe Stranding Machine Precautions During Operation

Hand safety

When operating the horizontal pipe stranding machine, pay attention to the position of the hand and keep it as far away from the blade and roller as possible to prevent being cut or pinched. Do not touch the rotating parts of the horizontal pipe stranding machine such as the roller and blade with your hands to avoid injury.

Object safety

Do not put your hands or other objects into the drum to prevent them from being entangled or clamped. When operating the horizontal pipe stranding machine, make sure there are no debris and foreign objects around to avoid being stuck or injured.

Power management

Before operating the horizontal pipe stranding machine, be sure to tie up your long hair or wear a hat, and do not wear gloves, necklaces, or other items that are easily entangled by machine parts. When operating the horizontal pipe stranding machine, make sure that the power switch and stop button are clearly located to facilitate emergency shutdown.

Packaging and Shipping

Packaging	Wood pallet/PE film/Wood box
Transportation methods	Road transport, rail transport, sea transport, air transportrt

Additional Information

Selling Units	Single item
Accepted payment currencies	USD, EUR, RMB
Accepted payment methods	T/T, L/C, Credit Card, PayPal, Western Union, Cash

Video

Certificate

Our Service

Pre-sales service
●Send a professional business manager to introduce the standard process of equipment and a reasonable plan for approval, and introduce the product characteristics and general situation of our factory.

●For technical solutions, send specialized technical personnel and business personnel to conduct technical exchanges and business disclosures. Through repeated discussions, the two parties finally came up with a plan that meets the customer's requirements, and actively cooperated with your company to choose a satisfactory product manufacturer.

In-sale service
●In the technical design, our factory optimizes the design, keeps improving, and cooperates closely with the design institute and your company. If the design institute needs to change, or the user has special needs, our factory will do our best to meet their requirements, and try our best to coordinate and cooperate with all parties.

●In the manufacturing process, we fully cooperate with the arrangement of drawing review, product supervision, inspection and acceptance and other stages of work, so that all the work before the product is shipped can be carried out in an orderly manner.

After-sales service
●Provide long-term technical support.

FAQ

Q: What is the main function of a horizontal pipe stranding machine?

A: Their primary function is to twist or intertwine multiple strands of conductive material—such as copper, aluminum, or steel—into a unified, cohesive structure. This process, known as stranding, enhances the flexibility, durability, and conductivity of the cable, making it suitable for various industrial applications.

Q: How does a horizontal pipe stranding machine differ from a vertical one?

A: The main difference lies in the orientation of the machine. A horizontal one has a more space-efficient layout and is often suitable for continuous production processes.

Q: What materials can be processed by a horizontal pipe stranding machine?

A: It can handle various materials such as copper, aluminum, steel, and plastic pipes.

Q: What are the key features of a high-quality horizontal pipe stranding machine?

A: Key features include precise control of stranding tension, uniform speed, and reliable mechanical components.

Q: How is the stranding speed of a horizontal pipe stranding machine controlled?

A: It is typically controlled through advanced drive systems and variable frequency drives for precise adjustment.

We're well-known as one of the leading horizontal pipe stranding machine manufacturers and suppliers in China. Please rest assured to wholesale cheap horizontal pipe stranding machine from our factory. All our products are with high quality and competitive price.
