Tube Stranding Machine

Why Choose Us

Customized service

We accept customers to customize equipment with different requirements, and technicians provide full guidance. We can also provide samples, test samples and a series of processes.

Quality control

We have established a complete quality management system, and strictly implement procedures such as drawing review, process monitoring, inspection and acceptance during product manufacturing to ensure that product quality meets the highest standards.

Professional team

We have a highly qualified professional team covering multiple fields such as R&D, production and after-sales service. We are committed to providing customers with efficient and reliable technical support and services.

Custom Tube Stranding Machine

We are committed to providing you with customized tubular stranding machine manufacturing solutions to precisely match your project needs. The main customizable parameter options are:

Target tube specifications

Includes detailed parameters of material type, diameter and wall thickness.

Stranding capacity

Includes single-layer and multi-layer stranding capabilities, with adjustable stranding pitch and direction (S or Z).

Drive system power

Configure motor power according to specific production efficiency requirements.

Operating speed range

A wide range of speed options from low to high, supporting variable frequency speed regulation for optimal performance.

Production capacity requirements

Optimize the design according to your specific production capacity goals.

Tube Stranding Machine Specification

The serial number	Name of purchased equipment		Overall dimensions	Model	The number of	The weight of the
1	High speed tube twister		Width 1000* height 1300* length 6800	6/165		2200KG
Equipment composition	1, The equipment is composed of Central Line, barrel, forming, traction, retracting line, electric control part;
Project	The serial number	Equipment structure	Function requirements and parameters of the device			Note
The base this work can and ginseng The number	1	Diameter of wire before twisting (mm)	0.1 ~ 0.30
	2	Diameter after twist (mm)	0.3 ~ 1.5
	3	Twist range (mm)	1 ~ 50
	4	Equipment speed (R.P.M.)	Maximum speed 3000 RPM, working speed 2800 RPM, equipment speed adjustment can be set password (PLC function control)
	5	Operating Direction of equipment	Facing the device, the wire is on the right hand side
	6	Twist direction of system	S/Z
	7	Tube threading mode	The threading
	8	Steel wire strength grade range (Mpa)	600 ~ 2800
	9	Stop when the pre-designed meter length is reached	Measuring meter adopts PLC automatic stop to measuring meter, meter accuracy ≤ 1.5%.
	10	The equipment should stop automatically when the broken line is detected in the area of cylinder body and pressing die	The equipment has disconnection stop alarm device.
	11	LED lighting is installed inside the safety cover	For shockproof lamps and lanterns, safety protection should be provided on the surface to avoid collision of other objects and steel wire
	12	Shield	Each I-wheel corresponds to an observation window.The visible window is made of toughened glass, and the safety cover is flexibly opened up and down with seamless steel pipe. The machine can be stopped immediately if it is opened ≤150mm.When the safety cover is open and not locked, the platform can only be moved but cannot be started normally.The maximum noise is 82dB tested at a distance of 1000mm from the protective cover

Our Best-Selling Tube Stranding Machine

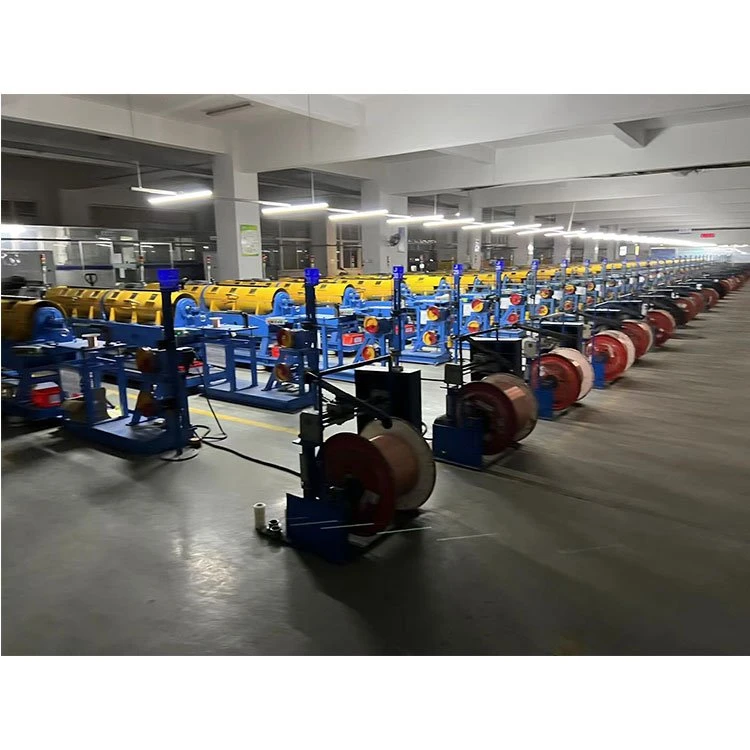

Wire Stranding Machine
It is a special motor stator winding machine, mainly for automobile and motorcycle magneto, industrial ventilator, golf cart, Winding of coils for balance cars, high-end strollers, large drone motors, etc.

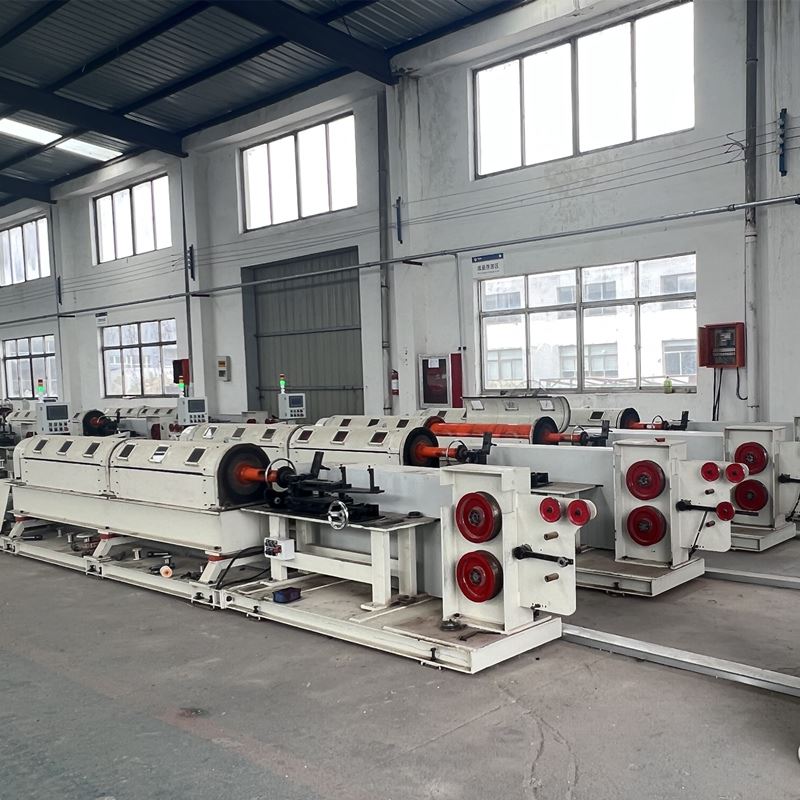

Tubular Stranding Machine
This machine uses a multi-axis motion controller to control and drive three-axis servo motors and multiple cylinders to perform automatic actions such as winding, arranging, clamping and intermediate taps.
An automatic tension system can be selected, and the tension or the tension of each step can be adjusted through the touch panel.

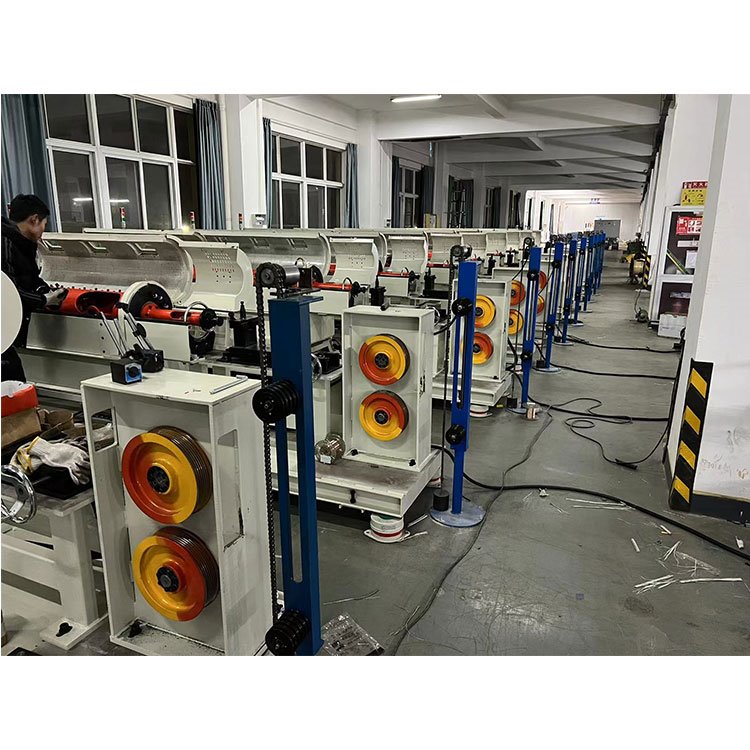

80/3 Horizontal Pipe Stranding Machine
It is suitable for winding the rotor windings of micro motors such as automobiles, motorcycle starter motors, automobile heater motors, oil pump motors, power tool motors, etc.

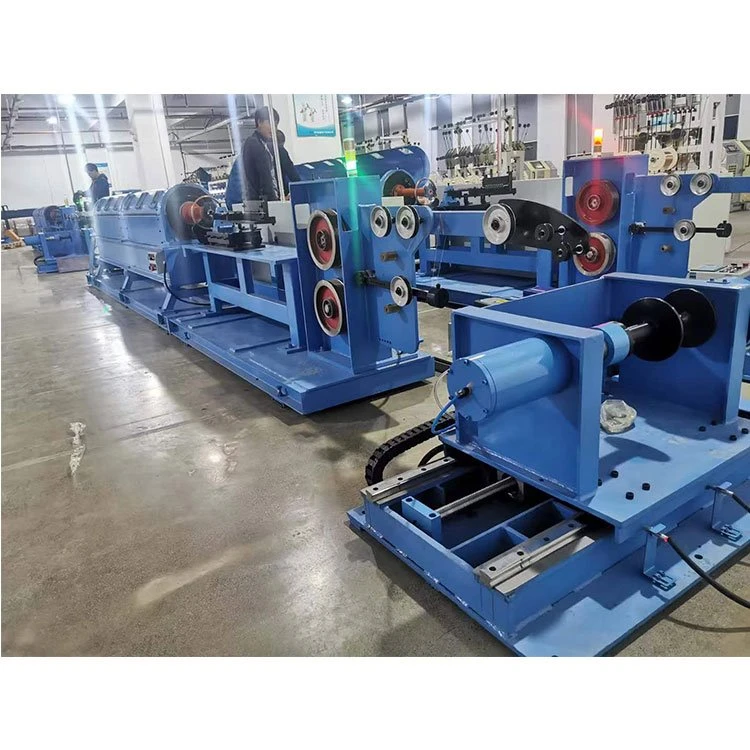

165/18 Horizontal Pipe Stranding Machine
The damping is generated by the magnetic field conversion torque change without mechanical friction, so it can generate stable tension for a long time, and the accuracy can be effectively guaranteed.

Features of Tube Stranding Machine

The overall base and the whole machine run smoothly, and the barrel is made of high-quality seamless steel pipes, with high structural strength and low noise.

The speed-regulating motor adjusts the speed steadily and is easy to operate. The host has a forward and reverse rotation.

The twisting body and traction adopt full-speed gearbox, with low labor intensity and accurate pitch.

Equipped with safety measures such as automatic shutdown device for disconnection and door-opening parking device.

Precautions for Operation of Tube Stranding Machine

● It is strictly forbidden to open the cover during the normal operation of the machine.

● Do not make knots when wiring. (Use cotton thread to socket, pay attention to socket direction)

● The number of knots and the number of knots should be indicated on the label when lowering the shaft to facilitate the next process operation.

● For non-emergency parking, do not press the red emergency stop button.

● Turn off the power after shutdown.

● When wrapping aluminum foil, the core wire must be completely wrapped by aluminum foil. Usually, the overlap rate of aluminum foil is 27%-30%, and the overlap width is 2-4mm (for special models, refer to the specific requirements of the wire bond card).

● The tension of the aluminum foil should be appropriate. If the tension is too large, the aluminum foil is easy to break, and if the tension is too small, the core wire will not be tight and will slip.

● The aluminum foil cannot be wrapped upside down, and the conductive surface (white bright surface, tested with a multimeter for conduction) must cover the core wire and the ground wire.

● The ground wire cannot be wrapped in the middle of the core wire. It should be wound around the side of the entire core wire to contact the conductive surface of the aluminum foil.

● If an abnormality is found in production and cannot be solved by itself, the machine should be shut down immediately and reported to the foreman or technician for handling.

● When installing the threaded eye mold, pay attention to the size of the stranded core wire not to be too tight when passing through it. To prevent the core wire from being scratched.

● The tension should be adjusted properly (when it is too tight), it will cause the inner core wire to stretch when the outer jacket is intact.

Packaging and Shipping

Packaging	Wood pallet/PE film/Wood box
Transportation methods	Road transport, rail transport, sea transport, air transportrt

Additional Information

Selling Units	Single item
Accepted payment currencies	USD, EUR, RMB
Accepted payment methods	T/T, L/C, Credit Card, PayPal, Western Union, Cash

Video

Certificate

Our Service

Pre-sales service
●Send a professional business manager to introduce the standard process of equipment and a reasonable plan for approval, and introduce the product characteristics and general situation of our factory.
●For technical solutions, send specialized technical personnel and business personnel to conduct technical exchanges and business disclosures. Through repeated discussions, the two parties finally came up with a plan that meets the customer's requirements, and actively cooperated with your company to choose a satisfactory product manufacturer.

In-sale service
●In the technical design, our factory optimizes the design, keeps improving, and cooperates closely with the design institute and your company. If the design institute needs to change, or the user has special needs, our factory will do our best to meet their requirements, and try our best to coordinate and cooperate with all parties.
●In the manufacturing process, we fully cooperate with the arrangement of drawing review, product supervision, inspection and acceptance and other stages of work, so that all the work before the product is shipped can be carried out in an orderly manner.

After-sales service
Provide long-term technical support.

FAQ

Q: What is a tube stranding machine used for?

A: A tube stranding machine is used for twisting or combining multiple strands of wires or tubes to form a single cable or tube structure.

Q: How does a tube stranding machine work?

A: The main stranding principle is that when the copper wire passes through the twisting bow on the stranding machine, the twisting bow passes through the circular motion, so that each single copper wire is helically wound. Stranded copper wire is where the largest amount of single copper wire is used.

Q: What are the key components of a tube stranding machine?

A: The main components include the drive system, spool holders, tension control devices, and the stranding head.

Q: What factors affect the productivity of a tube stranding machine?

A: Factors such as the machine's speed, the number of strands being processed simultaneously, and the efficiency of the control system can impact productivity.

Q: How do we ensure quality?

A: Always pre-production samples before mass production.
Always final inspection before shipment.
