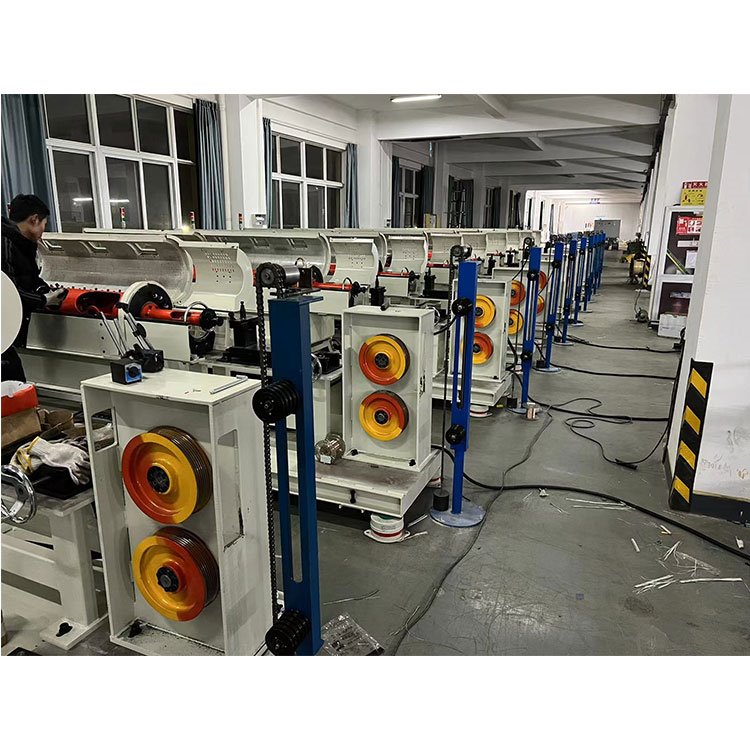

100/12 Horizontal Pipe Stranding Machine

Use

It is suitable for data cables (category five, six, seven) and high-frequency cables, computer cables, power cables and other multi-strand cables and synchronous tapes.

Performance characteristics

The whole host machine adopts a cantilever structure, which is composed of PLC program + frequency conversion speed control + pneumatic control. It has excellent design such as stepless setting of twist distance through PLC, no take-up wheel, and moving plate ranking, which ensures the tension of the cable. Uniform; in order to ensure the stability of the geometric structure after cabling, a single-button cabling structure is adopted, and a large-diameter steering guide wheel is designed to minimize bending and low loss; And the reciprocating movement of the spool, through the double control of mechanical linkage and electrical appliances, to ensure that the unit has the characteristics of excellent synchronization and stable laying distance from the four states of startup, normal operation, slow stop and emergency stop; the performance of the whole machine Stable and easy to operate, ensuring excellent product performance.

The whole system

1. Device orientation: left-to-right → right-to-retract

2. Equipment power supply: 380V/50HZ

3. Painting: sky blue (can be made according to customer requirements)
