As a trusted supplier of the 100/3 Horizontal Pipe Stranding Machine, I understand the importance of ensuring proper alignment for these machines. Correct alignment is crucial for the quality of the final product, the efficiency of the stranding process, and the long - term durability of the machine itself. In this blog post, I will explain in detail how to check the alignment of the 100/3 Horizontal Pipe Stranding Machine.
Understanding the Basics of Alignment
Before diving into the inspection process, it's essential to understand what alignment means in the context of the 100/3 Horizontal Pipe Stranding Machine. Alignment refers to the precise positioning of the various components of the machine, such as the pay - off stands, the stranding cage, the take - up mechanism, and the guiding elements. When these components are properly aligned, the wires can be stranded uniformly and without undue stress on the machine's parts.
Pre - Inspection Preparations
- Power Off: First and foremost, make sure the machine is completely powered off. This is a safety measure to prevent any accidental start - up during the inspection, which could lead to serious injuries.
- Clean the Machine: Remove any debris, dust, or remnants of the previous stranding operations from the machine. This step not only makes it easier to access and examine the components but also protects the machine from additional wear and tear during the alignment check.
- Gather Tools: You will need basic measuring tools such as a straightedge, a dial indicator, a caliper, and a laser alignment tool if available. These tools will help you accurately assess the alignment of different parts of the machine.
Checking the Alignment of the Pay - Off Stands
- Vertical Alignment: Use a straightedge and a spirit level to check the vertical alignment of the pay - off stands. Place the straightedge along the side of the stand and the spirit level on top. The stand should be perfectly vertical; any deviation can cause uneven tension on the wires during the stranding process.
- Horizontal Spacing: Measure the horizontal spacing between multiple pay - off stands using a caliper. Ensure that the spacing is consistent as specified in the machine's manual. Incorrect spacing can lead to wire entanglement and inconsistent stranding.
- Height Alignment: Check that all pay - off stands are at the same height. This can be done by using a laser alignment tool or a simple measuring tape. Uneven height can result in wires being pulled at different angles, affecting the quality of the stranded product.
Inspecting the Stranding Cage Alignment
- Rotational Alignment: The stranding cage should rotate smoothly and be centered within the machine. Use a dial indicator to measure any run - out or eccentricity in the rotation. Mount the dial indicator on a stable surface near the cage and touch the probe to the outer surface of the cage. As the cage rotates, the dial indicator should show minimal variation. If there is significant run - out, it may indicate misalignment or wear in the cage bearings.
- Axial Alignment: Check the axial alignment of the stranding cage by measuring the distance between the cage and the adjacent components at multiple points along its length. A consistent distance indicates proper axial alignment. Any deviation may cause the wires to be stranded at an incorrect pitch or angle.
Verifying the Take - Up Mechanism Alignment
- Parallelism: The take - up mechanism should be parallel to the stranding cage. Use a straightedge to check the parallelism between the two. Place the straightedge across the top or side of the take - up and the stranding cage. If there is a gap at one end, it means the take - up is misaligned.
- Tension Alignment: The tension applied by the take - up mechanism should be consistent across the entire width of the stranded product. You can measure the tension using a tension meter at different points along the wire. Inconsistent tension can lead to loose or tight spots in the stranded cable.
Checking the Guiding Elements
- Wire Guides: Inspect the wire guides for proper alignment. The wires should pass through the guides smoothly without any kinks or bends. Use a straightedge to check if the guides are in a straight line. Misaligned wire guides can cause the wires to rub against the sides, leading to abrasion and reduced wire life.
- Cable Guides: Similar to wire guides, cable guides should also be properly aligned. They ensure that the stranded cable is guided accurately to the take - up mechanism. Check the alignment of cable guides using a laser alignment tool or by visually inspecting the path of the cable.
Corrective Actions
If any misalignments are detected during the inspection, corrective actions should be taken immediately. For minor misalignments, simple adjustments can be made using the adjustment screws or bolts provided on the machine's components. However, for more severe misalignments, it may be necessary to disassemble and reassemble the affected parts. In some cases, it may be advisable to consult the machine's manual or contact the manufacturer for further guidance.
Importance of Regular Alignment Checks
Regular alignment checks are essential for maintaining the performance of the 100/3 Horizontal Pipe Stranding Machine. Over time, the machine's components may shift due to vibrations, wear and tear, or improper handling. By conducting regular alignment checks, you can identify and correct these issues before they lead to more significant problems, such as reduced product quality, increased downtime, and higher maintenance costs.
Related Products

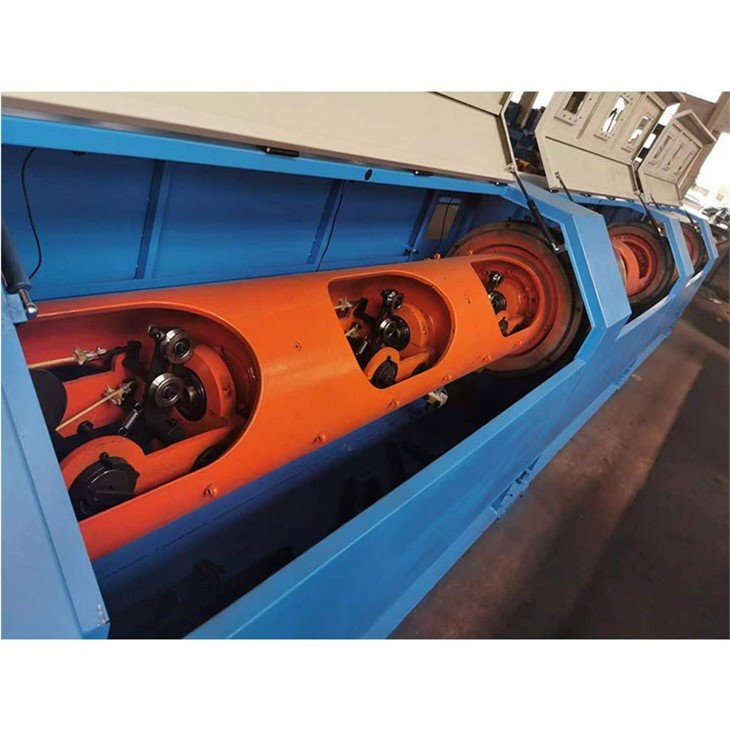

If you are interested in other types of stranding machines, we also offer the 250/6 Horizontal Pipe Stranding Machine, which is suitable for larger - scale stranding operations. Additionally, our Double Twist Stranding Machine provides a different stranding method for specific wire and cable applications. And for more customized requirements, we have the 165/18 Horizontal Pipe Stranding Machine, which offers unique stranding capabilities.
