Stranding machines play a crucial role in various industries, especially in cable and wire manufacturing. Adjusting the tension in a stranding machine is a delicate yet essential task that directly impacts the quality of the final product. As a reputable stranding machine supplier, I understand the significance of proper tension adjustment and the challenges that operators may face. In this blog, I will share some practical insights on how to adjust the tension in a stranding machine effectively.
Understanding the Importance of Tension in Stranding Machines
Before delving into the adjustment process, it is essential to understand why tension control is so important. In a stranding machine, multiple wires or strands are twisted together to form a single cable. The tension applied to each strand determines how evenly they are laid and how tightly they are bound. If the tension is too high, the strands may break, leading to production downtime and increased material waste. On the other hand, if the tension is too low, the cable may have a loose structure, which can affect its electrical and mechanical properties.
Proper tension adjustment ensures that the cable has a uniform diameter, consistent twist pitch, and good flexibility. It also helps to prevent issues such as cable kinking, uneven stranding, and poor insulation performance. In addition, maintaining the right tension can extend the lifespan of the stranding machine by reducing wear and tear on the components.
Factors Affecting Tension in Stranding Machines
Several factors can influence the tension in a stranding machine. Understanding these factors is the first step in making accurate tension adjustments.
- Material Properties: Different materials have different physical properties, such as elasticity, stiffness, and friction coefficient. These properties can affect how the material behaves under tension. For example, a more elastic material may require less tension to achieve the same level of twist as a stiffer material.
- Machine Speed: The speed at which the stranding machine operates can also impact the tension. As the machine speed increases, the centrifugal force acting on the strands also increases, which can cause the tension to fluctuate. Therefore, it is important to adjust the tension according to the machine speed.
- Strand Count and Size: The number of strands being stranded and their individual sizes can affect the overall tension. More strands or larger strands generally require higher tension to ensure proper twisting.
- Guide System: The guide system in the stranding machine, including pulleys, rollers, and tensioners, can introduce friction and resistance, which can affect the tension. A well-designed and properly maintained guide system can help to minimize these effects.
Steps to Adjust the Tension in a Stranding Machine
Now that we understand the importance of tension and the factors that affect it, let's look at the steps involved in adjusting the tension in a stranding machine.
Step 1: Prepare the Machine
Before making any tension adjustments, it is important to ensure that the stranding machine is in good working condition. Check the machine for any signs of wear or damage, and make sure that all the components are properly lubricated. Also, ensure that the guide system is clean and free of debris.
Step 2: Set the Initial Tension
The initial tension setting is based on the material properties, strand count, and machine speed. Consult the machine's operating manual or the material supplier for recommended tension settings. Start by setting the tension to a relatively low value and gradually increase it until the strands are properly twisted.
Step 3: Monitor the Tension
Once the initial tension is set, monitor the tension using a tension meter or other suitable measuring device. The tension should be consistent across all the strands. If there are any significant variations in the tension, it may indicate a problem with the guide system or the tensioning mechanism.
Step 4: Make Fine Adjustments
Based on the tension readings, make fine adjustments to the tensioning mechanism. This may involve adjusting the tensioning screws, changing the tensioning weights, or adjusting the pneumatic or hydraulic pressure. Make small adjustments at a time and recheck the tension after each adjustment.
Step 5: Check the Stranding Quality
After making the tension adjustments, check the quality of the stranded cable. Look for any signs of uneven stranding, loose strands, or broken wires. If the stranding quality is not satisfactory, continue to make further adjustments until the desired quality is achieved.
Tips for Effective Tension Adjustment
- Use a Tension Meter: A tension meter is a valuable tool for accurately measuring the tension in the strands. It provides real-time feedback and helps to ensure that the tension is within the desired range.
- Regularly Inspect the Guide System: The guide system plays a crucial role in maintaining consistent tension. Regularly inspect the pulleys, rollers, and tensioners for wear and damage, and replace any worn components as needed.
- Keep a Record: Keeping a record of the tension settings and adjustments can help you to track the performance of the stranding machine over time. It can also be useful for troubleshooting and making future adjustments.
- Train the Operators: Proper training is essential for operators to understand the importance of tension adjustment and to perform the adjustments correctly. Provide comprehensive training to the operators on the operation of the stranding machine and the tension adjustment process.
Our Stranding Machine Offerings
As a leading stranding machine supplier, we offer a wide range of high-quality stranding machines to meet the diverse needs of our customers. Our machines are designed with advanced technology and precision engineering to ensure reliable performance and excellent stranding quality.

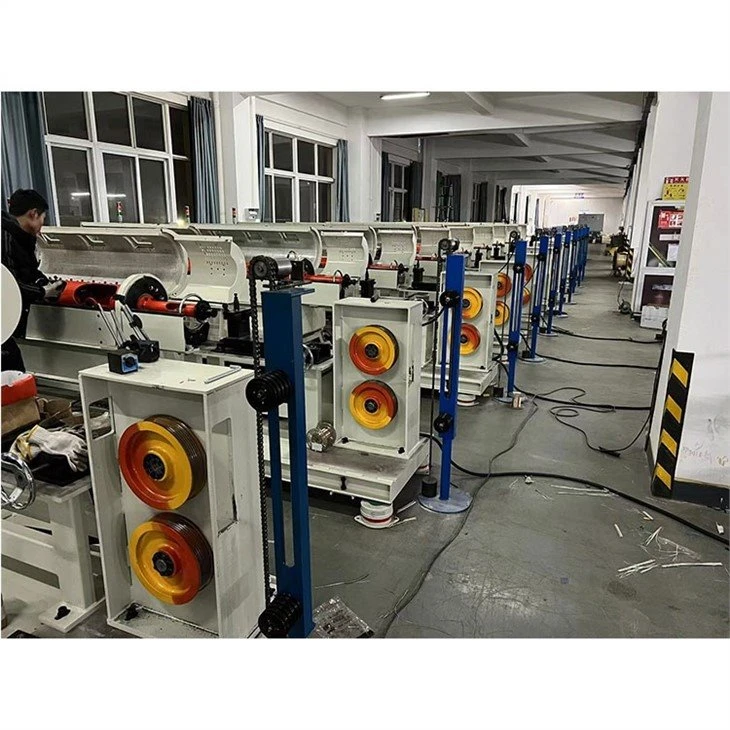

Some of our popular stranding machines include the 120/3 Horizontal Pipe Stranding Machine, the 80/3 Horizontal Pipe Stranding Machine, and the 165/18 Horizontal Pipe Stranding Machine. These machines are suitable for a variety of applications, including cable manufacturing, wire rope production, and fiber optic cable stranding.
Contact Us for Purchase and Consultation
If you are interested in purchasing a stranding machine or need more information about tension adjustment and other aspects of stranding machine operation, please feel free to contact us. Our team of experts is ready to assist you in selecting the right machine for your specific needs and providing you with professional advice and support.
