The 250/6 Horizontal Pipe Stranding Machine is a piece of highly sophisticated equipment commonly used in the wire and cable manufacturing industry. Its primary function is to strand multiple wires together to form a single, more robust cable. But the question on the minds of many potential users and industry insiders is: Can the 250/6 Horizontal Pipe Stranding Machine be used for silver - plated wire stranding? In this blog, we'll take a deep dive into this topic as a supplier of this remarkable machine.
Understanding the 250/6 Horizontal Pipe Stranding Machine
Before we can address whether it's suitable for silver - plated wire stranding, let's first understand the basic principles and capabilities of the 250/6 Horizontal Pipe Stranding Machine.
This machine operates on the principle of horizontal stranding, where multiple wire bobbins are placed on a rotating cage, and the wires are fed into a stranding pipe. As the cage rotates, the wires are twisted around a central axis in a precise and controlled manner. The "250" in the model number typically refers to the maximum outer diameter of the cable that can be produced, and the "6" denotes the maximum number of wire strands that can be stranded simultaneously.
The machine is equipped with advanced control systems that ensure consistent tension, pitch, and speed during the stranding process. This results in high - quality stranded cables with uniform thickness and excellent electrical properties. Its versatility allows it to handle a wide range of wire materials, including copper, aluminum, and some alloy wires.
Characteristics of Silver - Plated Wires
Silver - plated wires are a special type of wire used in many high - end applications. Silver has excellent electrical conductivity, thermal conductivity, and corrosion resistance. When copper or other base metals are plated with silver, the resulting silver - plated wire combines the advantages of both materials: the high strength of the base metal and the superior conductivity and corrosion resistance of silver.
However, silver - plated wires also have some unique characteristics that need to be considered during the stranding process. The silver plating is relatively thin, usually ranging from a few microns to tens of microns. Therefore, during stranding, excessive friction or pressure can damage the silver plating, leading to a decrease in the wire's performance and appearance.
Compatibility of the 250/6 Horizontal Pipe Stranding Machine with Silver - Plated Wires
Advantages
- Precision Control: The advanced control systems in the 250/6 Horizontal Pipe Stranding Machine can precisely control the tension of each wire. This is crucial for silver - plated wires because maintaining a stable tension can prevent the silver plating from peeling off or cracking due to excessive pulling force. The ability to adjust the stranding pitch also ensures that the stranded silver - plated cable meets the specific requirements of different applications.
- Versatile Design: The machine's design allows for easy adjustment and modification to accommodate different wire diameters and materials. When stranding silver - plated wires, operators can adjust the machine settings to match the characteristics of these special wires, such as reducing the rotation speed to reduce friction and wear on the silver plating.
Challenges
- Surface Protection: Although the machine can control tension precisely, the high - speed rotation and contact between the wires and the stranding pipe can still cause some degree of abrasion to the silver plating. Special measures need to be taken, such as using lubricants or coating the stranding pipe with a soft and wear - resistant material, to minimize the damage to the silver plating.
- Cleaning and Maintenance: Silver - plated wires are more sensitive to dirt and contaminants than ordinary wires. Any debris or residue on the machine parts can scratch the silver plating during the stranding process. Therefore, the machine needs to be cleaned and maintained more frequently to ensure a clean working environment for the silver - plated wires.
Industry Applications and Success Stories
There are many applications in industries such as aerospace, telecommunications, and high - end electronics where silver - plated wires are used extensively. In these industries, the quality of the stranded cables is of utmost importance. Our company has provided the 250/6 Horizontal Pipe Stranding Machine to several customers who are engaged in the production of silver - plated cables.
One of our customers, a leading aerospace component manufacturer, used the machine to strand silver - plated copper wires for avionics cables. After some initial adjustments to the machine settings and the implementation of surface protection measures, they were able to produce high - quality silver - plated stranded cables that met the strict requirements of the aerospace industry. This success not only demonstrated the feasibility of using the 250/6 Horizontal Pipe Stranding Machine for silver - plated wire stranding but also enhanced our reputation in the industry.
Other Horizontal Pipe Stranding Machines in Our Product Line

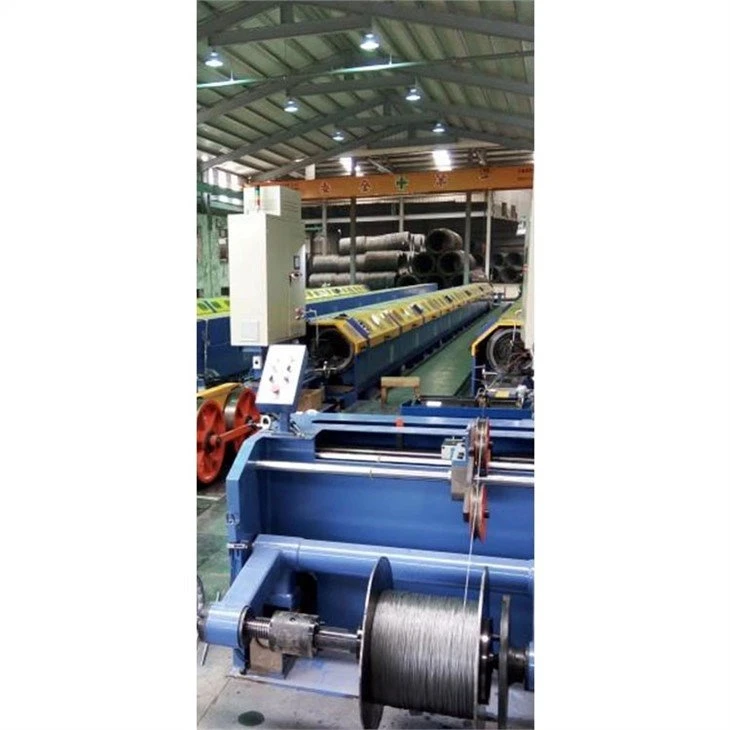

In addition to the 250/6 Horizontal Pipe Stranding Machine, our company also offers a variety of other horizontal pipe stranding machines to meet different production needs. For example, the 80/3 Horizontal Pipe Stranding Machine is suitable for smaller - scale production and finer wire stranding. The 200/12 Horizontal Pipe Stranding Machine can handle a larger number of wire strands and is ideal for high - volume production. And the 165/18 Horizontal Pipe Stranding Machine provides a good balance between production capacity and flexibility.
Conclusion and Call to Action
In conclusion, the 250/6 Horizontal Pipe Stranding Machine can be used for silver - plated wire stranding, but it requires careful consideration of the unique characteristics of silver - plated wires and proper adjustment of machine settings and protection measures. With our years of experience and technical support, we can help you overcome the challenges and achieve high - quality silver - plated cable production.
If you are interested in our 250/6 Horizontal Pipe Stranding Machine or any other products in our line, we invite you to contact us for more information. Our team of experts is ready to assist you in choosing the right machine for your specific production needs and provide you with comprehensive after - sales service. Let's work together to take your wire and cable production to the next level.
